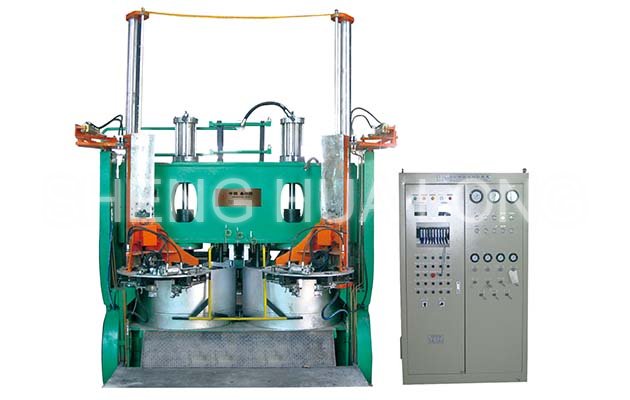

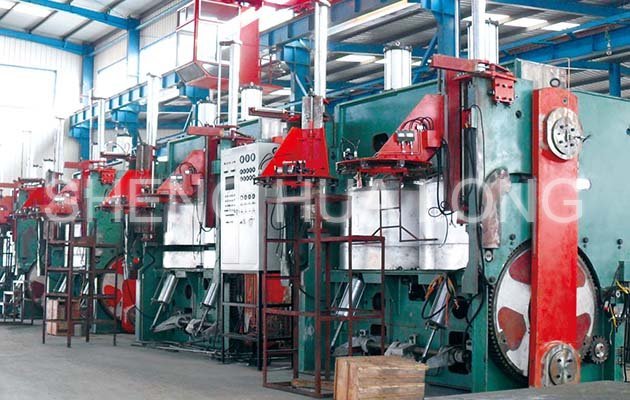

本机主要用来硫化斜胎胶及子午线轮胎，能够自动实现装胎、定型、硫化、卸胎。选配后充气装置能实现斜胶胎自动充气冷却。可使用两半模或活络模。本机主要用来硫化斜胎胶及子午线轮胎，能够自动实现装胎、定型、硫化、卸胎。选配后充气装置能实现斜胶胎自动充气冷却。可使用两半模或活络模本机主要用来硫化斜胎胶及子午线轮胎，能够自动实现装胎、定型、硫化、卸胎。选配后充气装置能实现斜胶胎自动充气冷却。可使用两半模或活络模
|
|
|
|
|
|
|
Type | 45" | 48" | 51" | 55" | 63.5" | 65.5" |
| Mould opening way | Horizon/turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon/turn |
| Center mechanism mode | B | B | B | B | B | B |
| Mould heating | Heating Plate | Heating Plate | Heating Plate | Steam pot(Heating Plate) | Steam pot(Heating Plate) | Steam pot(Heating Plate) |
| Mould quantity | 2 | 2 | 2 | 2 | 2 | 2 |
| (KN)Max.Mould closing force | 1720x2 | 1920x2 | 2000x2 | 2890x2 | 4220x2 | 4580（4220）x2 |
| Mould height | 230 ~ 457 | 250 ~ 500 | 250 ~ 560 | 245 ~ 455 | 254 ~ 642 | 254 ~ 635 |
| Steamer dianeter or ht plate diameter | ф1145 | ф1220 | ф1300 | ф1310 | ф1525 | ф1640 |
| Apply bead specification | 12 ~ 17.5 | 14 ~ 20 | 15 ~ 22 | 16 ~ 20 | 19 ~ 24 | 19 ~ 24.5 |
| (KW)Main motor power | 11 | 11 | v | 16 | 16 | 16 |
| mm Size(LxWxH) | 4116x4425x3840 | 5500x3540x3211 | 5700x3740x3520 | 6108x5380x5590 | 7000x5520x6154 | 7000x5520x5950 |
