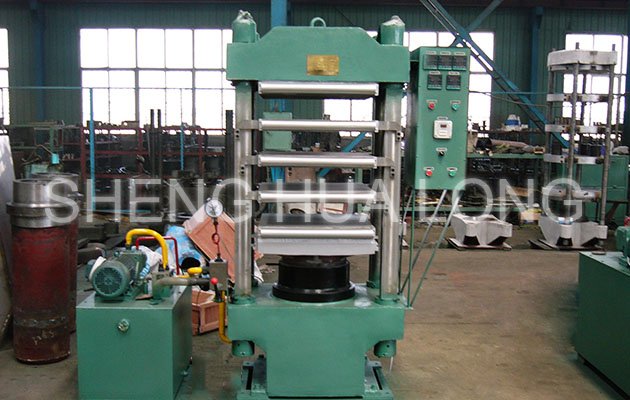

XLB - 100T plate vulcanizing machine

Previous Next


Type Technical parameter	XLB1000x1000x2Q	XLB1200x1200x2Q	XLB1400x1500x1Q	XLB1200x2700x2Q	XLB1600x6000x1Q	XLBE-Q1200x1200	XLBE-Q1600x1500
Total pressure( MN)	2.5	3.15	5	7.5	24	3.15	5
(mm) Plate distance	200	300	450	300	400	450	450
Working layer number	2	2	1	2	1	1	1
Mpa Unit area pressure of hot plate	2.5	2.19	2.38	2.31	2.5	2.19	2.08
(mm) Plunger stroke	400	400	400	400	400	400	400
Heating mode	Steam/oil	Steam/oil	Steam/oil	Steam/oil	Steam	Steam/oil	Steam/oil
(KW)Main motor power	5.5	5.5	11	18.5	26	11	11
mm Size: Length×Width X Height	1490 xl000×2510	1835 x1200×2600	2150 x1500×2900	1780×2890×2800	6300×2500×3200	1200 x1800×2140	1500×2400×2600
Frame form	Frame	Frame	Frame	Frame	Frame	Jaw	Jaw
