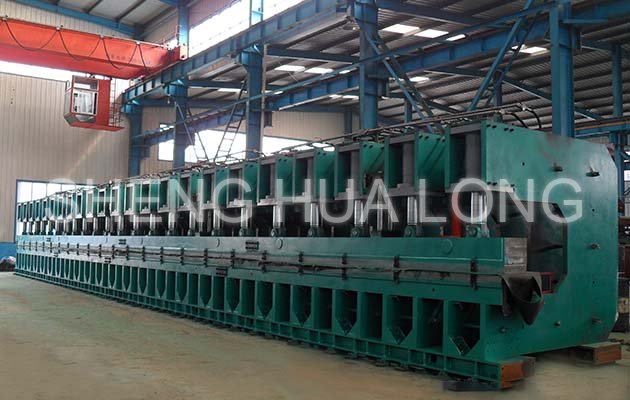

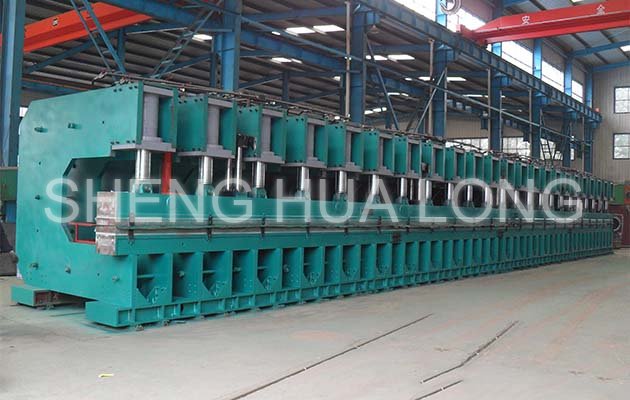

23 m plate vulcanizing machine

Previous Next

Type Technical parameter	XLB240x240x2	XLB350x350x2	XLB400x400x2	XLB500x500x2	XLB600x600x2/4	XLB700x700x2	XLB750x850x2/4	XLB900x900x2Q
Total pressure( MN)	0.15	0.25	0.5	0.63	1	1.2	1.6	2
(mm) Plate distance	125	125	125	125	125	125	200	300
Working layer number	2	2	2	2	2-4	2	2-4	2
Mpa Unit area pressure of hot plate	2.6	2.04	3.13	2.52	2.77	2.45	2.51	2.47
(mm) Plunger stroke	250	250	250	250	250/400	250	400	400
Heating mode	electricity	electricity	/electricity/steam	/ electricity/steam	/ electricity/steam	Steam	/ electricity/steam	Steam
(KW)Main motor power	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
mm Size: Length×Width X Height	1200x350x1300	1400x480x1380	1600x500x1480	1750x600x1540	1880x720x1680	2000x850x1750	2250x1200x2200	1400x900x2400mainframe
Frame form	Post	Post	Post	Post	Post	Post	Frame	Frame
